Electric Bike Urban MTF Large 1.4 26 inch 250Wh 36V/13Ah Frame 19'

Electric Bike Urban MTF Large 1.4 26 inch 250Wh 36V/13Ah Frame 19' View larger

Reduced price!

1 445,57 € tax incl.

-10%

1 606,19 € tax incl.

Visa, CB, MasterCard, 3-D S, Maestro, Amex, Transfert, Paypal, Stripe, Payplug, Delupay, Klarna, Revolut, 2x-3x-4x-6x Transfert & CB
Visa, CB, MasterCard, 3-D S, Maestro, Amex, Transfert, Paypal, Stripe, Payplug, Delupay, Klarna, Revolut, 2x-3x-4x-6x Transfert & CB

By buying this product you can collect up to 144 loyalty points. Your cart will total 144 points that can be converted into a voucher of 28,80 €.

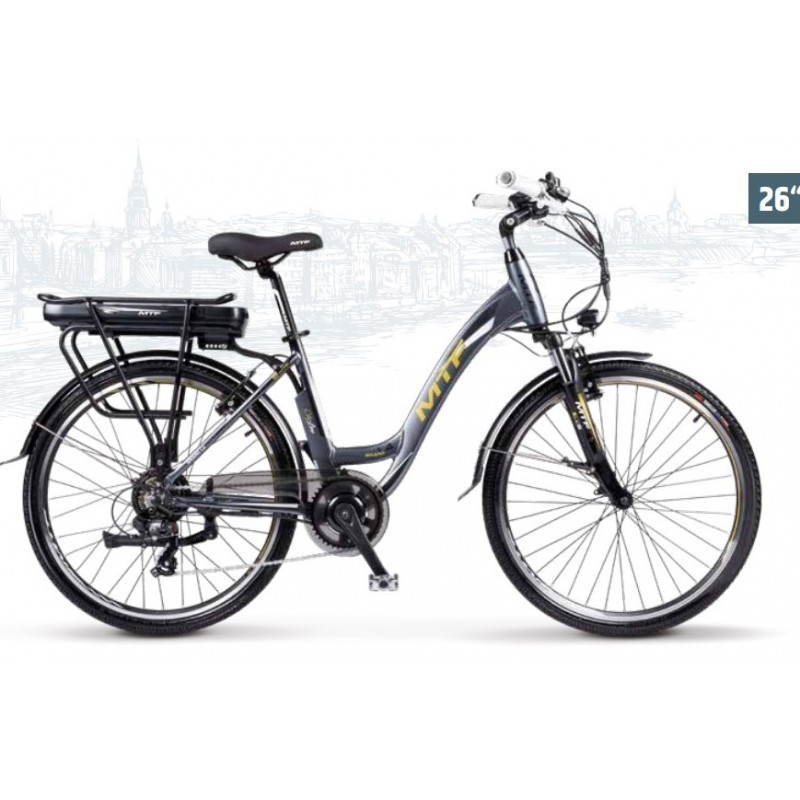

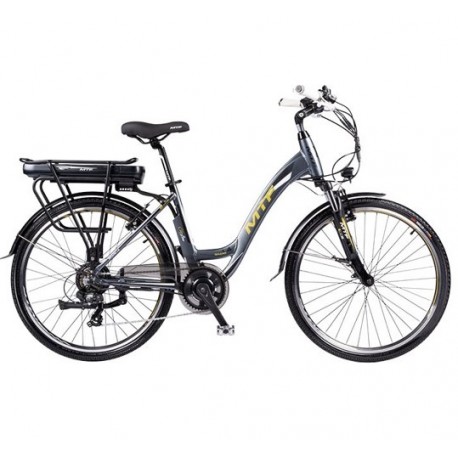

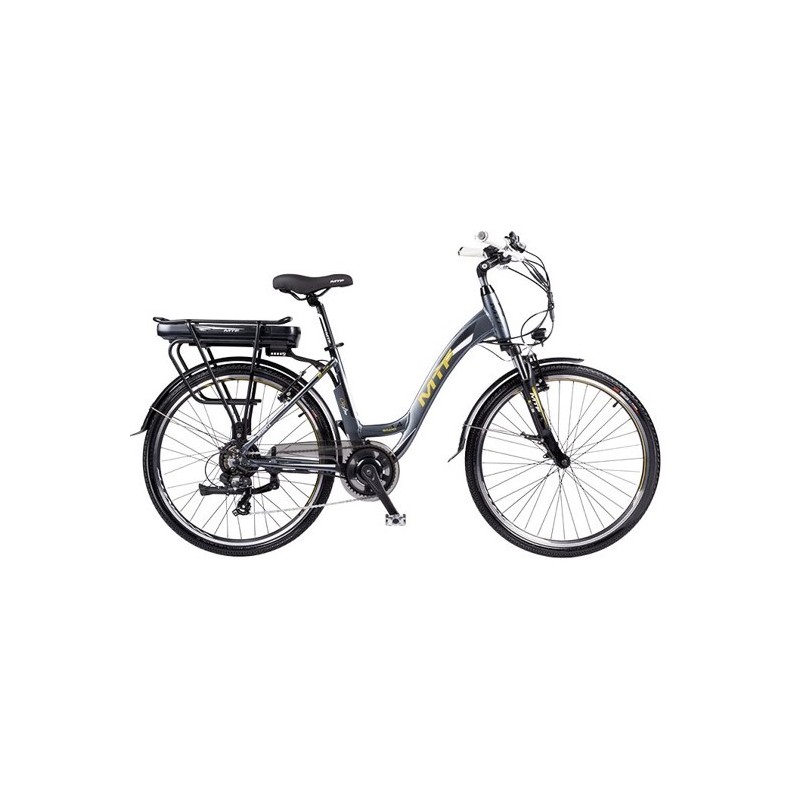

Electric bike Urban MTF Grand 1.4 26 inch 250Wh 36V/13Ah Frame 19'.
Electric bike with easy forking, also suitable for small people, perfect for city trips. Equipped with Bafang motor and built-in Samsung battery. Economical, this Grand 1.4 Urban Bike offers five pedal assistance modes and a maximum range of 100 km.

More details

Online only

4KOE23005-4KOE23005-MTF

New product

In stock

More info

Electric bike Urban MTF Grand 1.4 26 inch 250Wh 36V/13Ah Frame 19'.
Electric bike with easy forking, also suitable for small people, perfect for city trips. Equipped with Bafang motor and built-in Samsung battery.
Economical, this Grand 1.4 Urban Bike offers five pedal assistance modes and a maximum range of 100 km.

Technical description:
-Brand: MTF
-Category: Urban Grand 1.4
-Reference: Large 1.4
-Wheel diameter 26''
-Frame size 19''
-Derailleur: Shimano Tourney RD-TY300D
-Shimano SL-TX50.7 speed gear selector
-Fork with ZOOM suspension, travel 45 mm
-Tektro C310 V brakes
-CST 26 x 1.75 tires
-MTF Comfort+ saddle
-Control on LCD screen (5 levels of assistance)

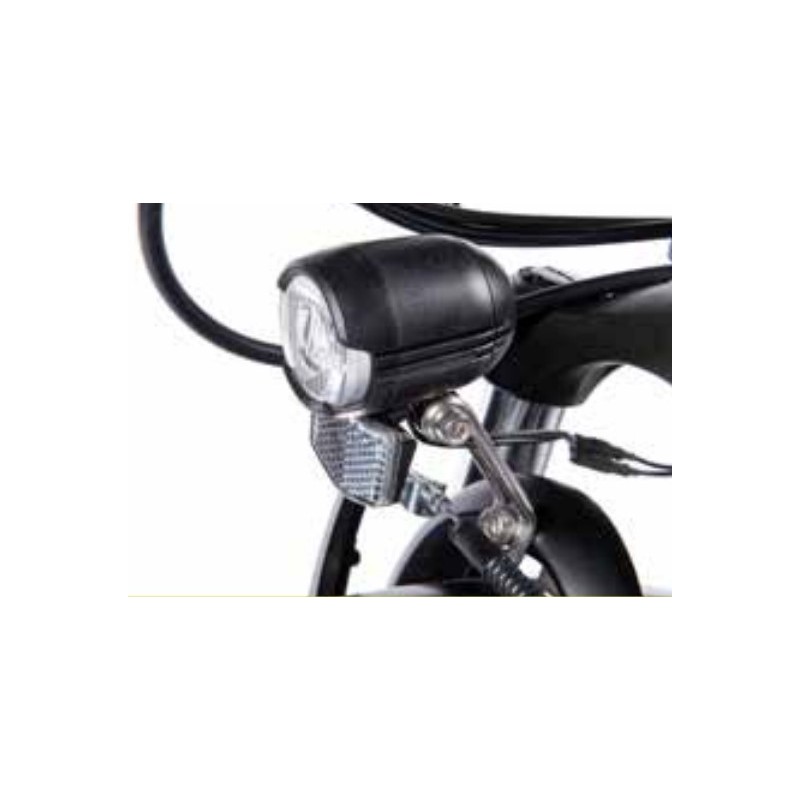

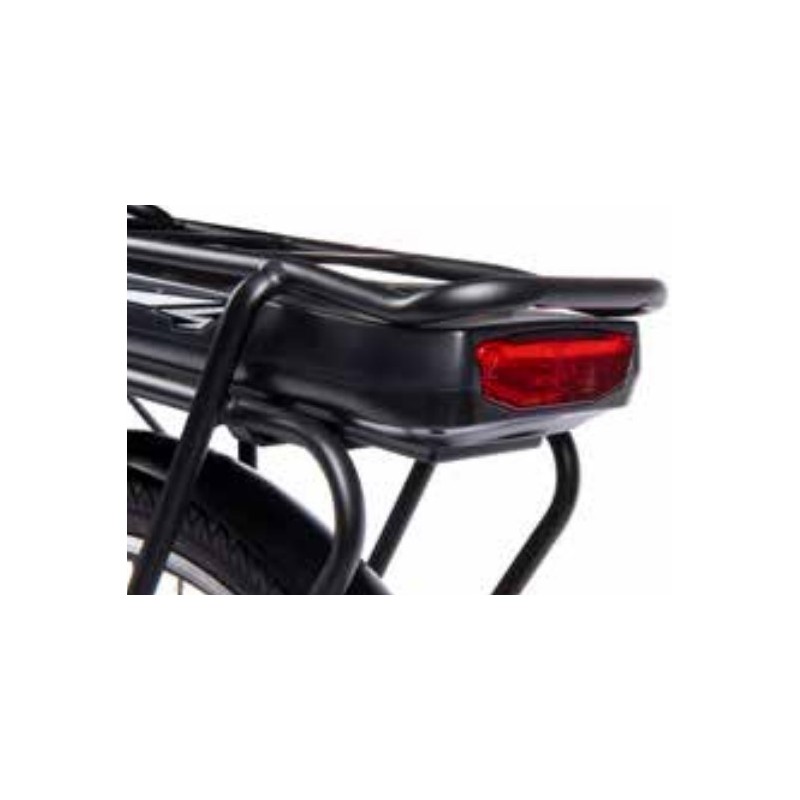

-Kickstand and lighting included
-Warranty: 2 years.

The Electric Urban Bike Grand 1.4 Gris is ideal for your walks on the road or in the city.
With its frame in size 19 inches and equipped with 26-inch wheels with CST 26 x 1.75 tires and FreiNs  in V Tektro C310, all completed by a fork ZOOM, travel 65 mm.
The Shimano Tourney RD-TY300D rear derailleur will allow you to enjoy 7 Speeds mechanical, in addition to 5 pedal assist modes Cycling.

The Urban Bike Grand 1.4 electric is equipped with a Bafang motor with a power of 500 W (32 Nm torque) which will allow you to benefit from a smooth and smooth pedaling aid, for a pleasant ride.
This motor, located in the luggage rack of the bike, is coupled to Sensors whose role is to regulate the pressure on the pedals and provide assistance proportional to the pedaling effort.
The engine of the Urban Bike is powered by a Samsung 36V/13Ah li-ion battery which you enjoy more or less autonomy.
Note, however, that the range of an e-bike battery depends not only on its capacity, but also on the pedal assist mode selected, the weight and type of riding of the user as well as the type of terrain.
The battery is located in the Integrated framework of the bike.
This MTF electric bike is delivered pre-assembled but the assembly of the front wheel and pedals will have to be done by you.

Technical specifications:

Brand: MTF Reference: Large 1.4
Material: Alu 6061 frame
Chassis: 19"
Wheel Diameter 26"

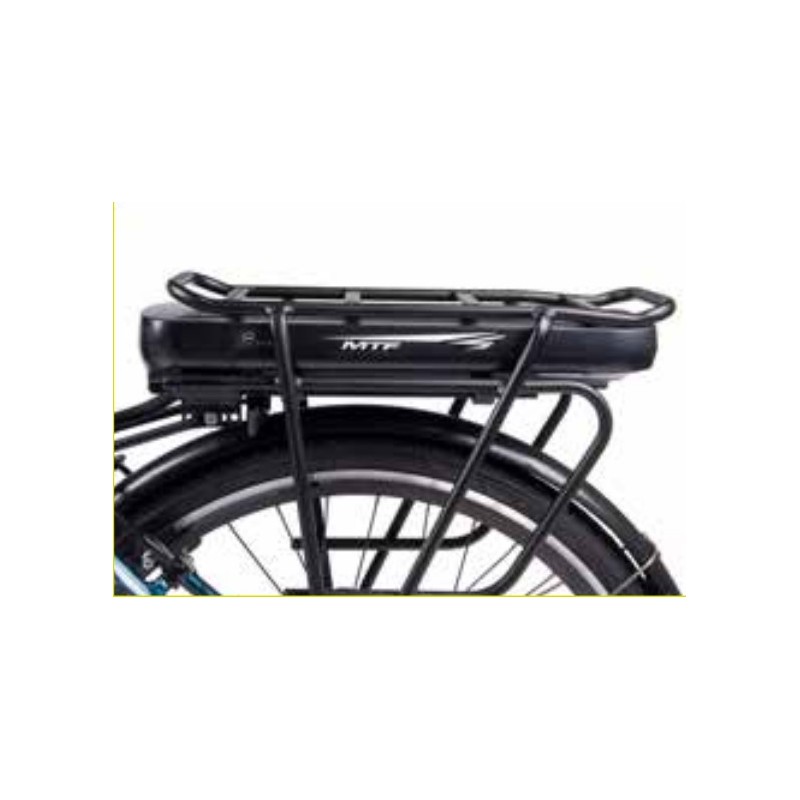

Recommended Li-ion battery 36V/13Ah (250Wh) SAMSUNG cells
Range max 100 km
Central motor with BAFANG pressure sensor 250W / max.500W, 32 Nm
Speed with assistance. up to 25 km/h
LED display 5 degrees of assistance
Load capacity limit: 120 kg
Weight 20.5 kg
ZOOM fork, 45 mm travel
PROWHEEL crankset (42 teeth), 170mm
SHIMANO Tourney RD-TY300D rear derailleur
SHIMANO SL-TX50, 7 Speed Controller
Pack cassette pinion SHIMANO MFTZ500 14-28, 7s
Channel: KMC Z7
Brakes / TEKTRO C310, V-Breaks
Front hub / front wheel hub NOVATEC 751 DSE

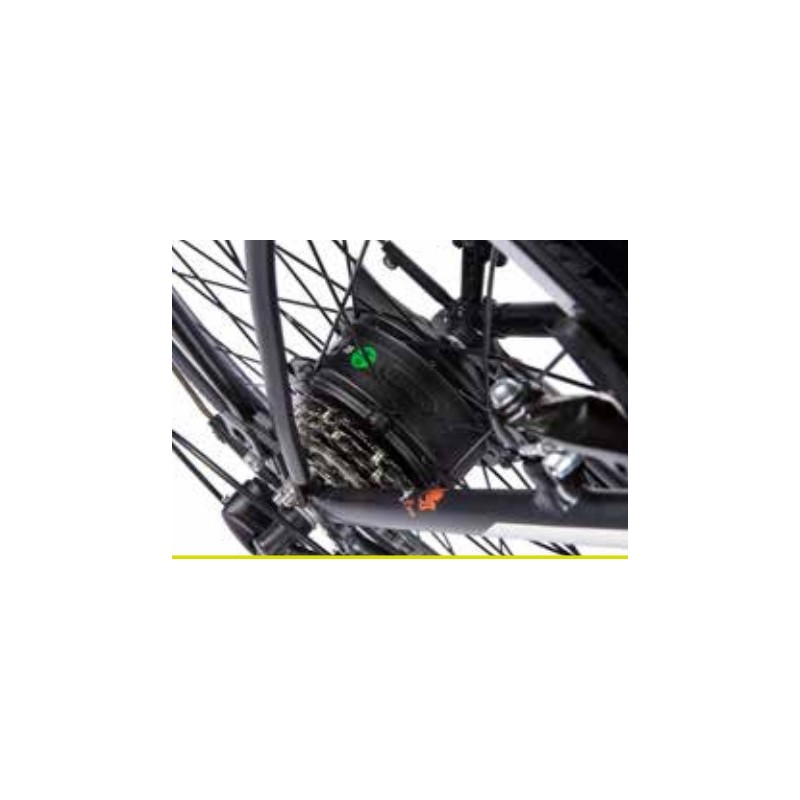

Heckmotor BAFANG rear hub
ALEX RIMS wheels, 36H, 559x20
Spokes: "SAPIM, reinforced (13G, diameter 2.3mm)stainless. black steel"
CST 26*1.75 Tires
Aluminum pedals, ball bearings
Handles: MTF Comfort, imitation leather with stitching.
Handlebars: MTF City Bike (620 x 25.4 mm)
Stem: adjustable MTF (25.4 x 180 mm, length 80 mm)
NECO steering set, 1 1/8'' thread, black.
Seatpost: MTF (27.2/350mm)
MTF Comfort+ saddle
Charger: MTF 36V/2A
Color: Grey
Warranty: 2 years.

Note: Recording and control.
It is essential to have your bike identified as soon as it is received by a Bicycode® number and to register it in the national file. This service is carried out by a professional: on presentation of the invoice we undertake to reimburse you a flat rate of 15 € * TTC maximum (*package of 15 € Ttc or the equivalent in foreign currency chf/£/$).
The Bicycode® is a code written on the frame of a bicycle, in order to deter theft and facilitate its return in case of theft.

Upon receipt of your MTF electric bike and before any use, it is necessary to have your bike checked and adjusted by a Bicycle Professional (mechanic, bike mechanic) to help you in its handling, and also to validate the warranty clauses, as well as for safety reasons.
This check/maintenance can be reimbursed upon presentation of invoice within 45 days after receipt of the bike and up to a maximum of 45 €* Ttc (*package of 45 € Ttc or the equivalent in foreign currency chf/£/$).

Brand: MTF
MTF is a European brand with a large assortment of bicycles. To order at an advantageous price.
The MTF e-bike are solid, serious, efficient, well equipped and very attractively priced.
The MTF electric bikes have a range of high-end components such as Samsung batteries, Shimano, new Shimano Steps EP8 intermediate engines, Bafang, etc.
You have the choice of frame size and battery capacity.


Specialist in Design and High Quality Brands for individuals and professionals. We present the creations and trendy objects of the biggest brands and designers.
Expert in the sale of equipment, furniture and contemporary objects for the home, garden, pool, heating and well-being.

Data sheet

Height19 inches - Frame 48 - 50 cm
Weight20.5 kg
ColourGrey
BrandMTF
ModelUrban Mountain Bike
Power250W, max.500W, 32 Nm
